Model No. P/03

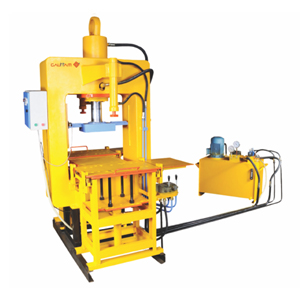

Vibro with High Pressure Paver Block Machine

Maximum Pressure Tonnage :

 70 & 90

Power Required :

 6 H.P.

Manufacturing Capacity :

 Paver Block 40 mm to 100 mm
Kerb Stone 450 mm x 300 mm x 150 mm
Railway Crossing Paver & Container Yard Paver

Oil Tank Capacity :

 210 Litres

* Uniform pressurized system with auto stop.
* Trolley System - Mould moves/operates through Trolley.
* Superior vibration & pressing system for max. compaction and strength.

Technical Information

  • Piston is Hard Chrome
  • Wiper on Cylinder top
  • At a time, 4 workers can work
  • For removing of Ring, Facility of Hydraulic Stand is available
  • It can also Manufacture Chequered Tiles, Elevation Wall Tiles, Cable Tiles
  • Paver made will have shining smooth finish
  • Pavers mfgd. from our Paver Machine are fitted in Petrol (Fuel) Pump, Railway Plateform, Air Port, Swimming Pool, Garden Resort, General Public Parking Place, Industrial Parking Place, Railway Crossing & Container Yard
  • Paver Machine facilitate Mfg. of Paver pc. in two colours : bottom in grey cement material and top pc. (thickness 10 mm) as required/selected by customer. This help cost efficiency of paver
